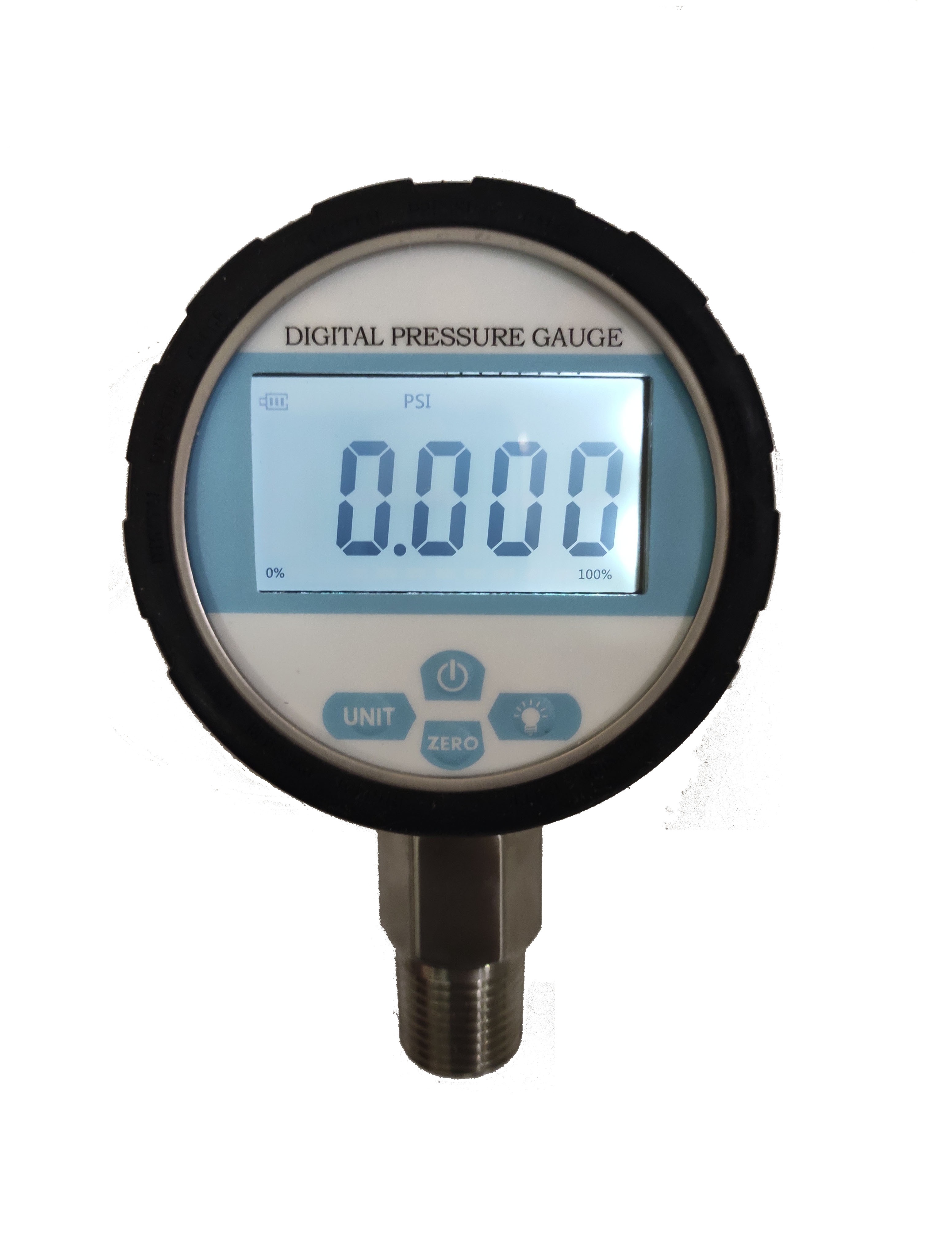

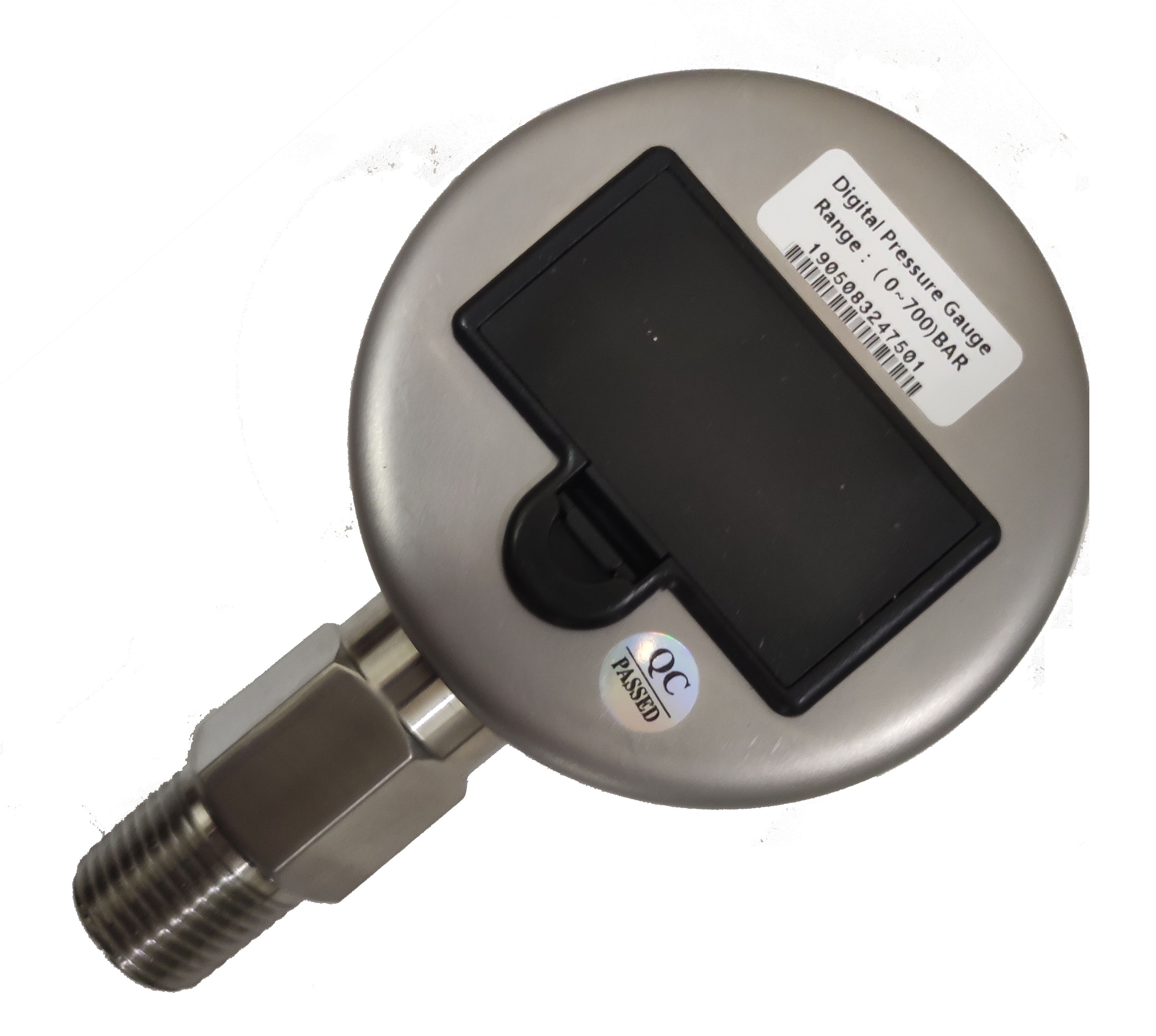

DPG280 Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors
DPG280 Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG280 testgauges provide an accurate,reliable and economic solution for pressure application in the industries of power,chemical ,petrol, metallurgy,metering,etc.Every DPG280 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.
Products Feature
Accuracy：0.4%F.S,±0.2%FS
Pressure range to 1000bar
4 bits big LCD display
Back light,
Stainless steel housing
Pressure units available (Mpa、bar、kgf 、mH2O、PSI、KPA、mmHg、torr、mBAR、cmH2O、Pa);
Zero clearing
On/off button,
Low voltage alarm
Maximun and minimum function
Dry-Battery-powered,low power design keeping it work more than 12 months
Connection :1/4NPT,1/4BSP (or according to clients' demand)
Pressure percentage display
SPECIFICATION:
|
Range |
General Range: 0-0.2...1...1.6...5...10...25...40...60...100Mpa MicroRange:0-5...10...25...40...60...100Kpa NegativeRange:-100 ~0Kpa(-1 ~0bar) |
|
Over Pressure |
Range≥10Mpa 150%; Range<10Mpa 200% |
|
Acc. |
±0.4%FS, ±0.2%FS |
|
Size |
80mm,60mm,100mm(optional ) |
|
Supply |
3V(2 batteries of AAA) |
|
Function |
Units/Back light/Reset/ON/OFF .IP65,Max.Min,Power display |
|
Measurement Medium |
Gas, water, oil |
|
Pressure Connection |
M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
|
Connector Material |
304SS |
|
No. |
Pressure Range |
|
|
DPG280-1 |
(-1~0)bar |
|
|
DPG280-2 |
(0~0.16) bar |
|
|
DPG280-3 |
(0~0.25) bar |
|
|
DPG280-4 |
(0~0.4)bar |
|
|
DPG280-5 |
(0~0.6) bar |
|
|
DPG280-6 |
(0~1) bar |
|
|
DPG280-7 |
(0~1.6)bar |
|
|
DPG280-8 |
(0~2.5)bar |
|
|
DPG280-9 |
(0~4) bar |
|
|
DPG280-10 |
(0~6) bar |
|
|
DPG280-11 |
(0~10 )bar |
|
|
DPG280-12 |
(0~16) bar |
|
|
DPG280-13 |
(0~25)bar |
|
|
DPG280-14 |
(0~40 )bar |
|
|
DPG280-15 |
(0~60)bar |
|
|
DPG280-16 |
(0~100)bar |
|
|
DPG280-17 |
(0~160)bar |
|
|
DPG280-18 |
(0~250)bar |
|
|
DPG280-19 |
(0~400)bar |
|
|
DPG280-20 |
(0~600)bar |
|
|
DPG280-21 |
(0~700)bar |
|
|
DPG280-22 |
(0~1000)bar |
|
|
DPG280-23 |
(0~1600)bar |
|
|
DPG280-24 |
(0~2000)bar |
| Range | General Range: 0-0.2...1...1.6...5...10...25...40...60...100Mpa MicroRange:0-5...10...25...40...60...100Kpa NegativeRange:-100 ~0Kpa(-1 ~0bar) |
|---|---|
| Over Pressure | Range≥10Mpa 150%; Range<10Mpa 200% |
| Acc. | ±0.4%FS, ±0.2%FS |
| Size | 80mm,60mm,100mm(optional ) |
| Supply | 3V(2 batteries of AAA) |
| Function | Units/Back light/Reset/ON/OFF .IP65,Max.Min,Power display |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
| Connector Material | 304SS |
