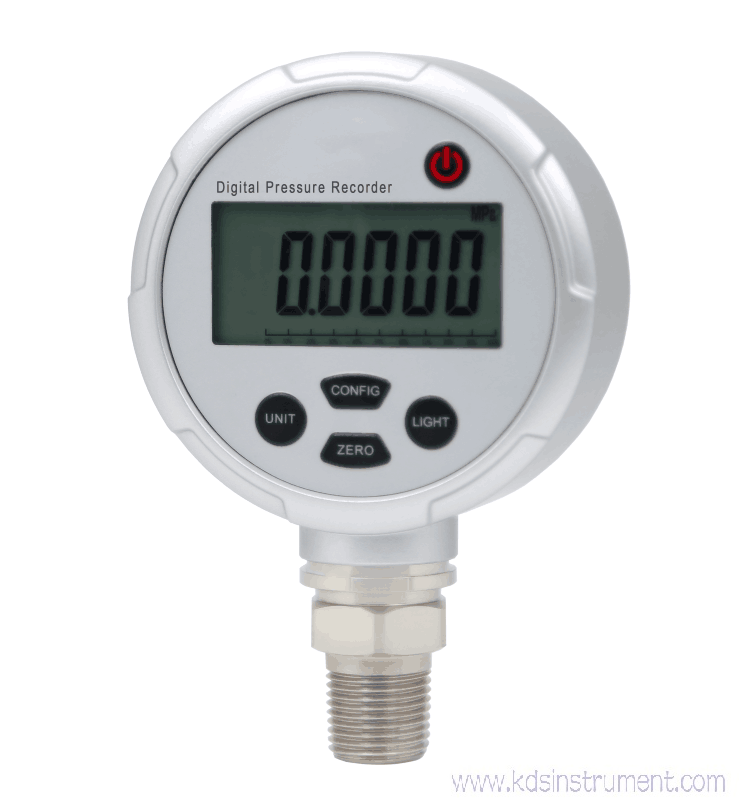

This digital pressure gauge is equipped with a large-size LCD display, which has various functions such as clearing, backlighting, switching, unit switching, low voltage alarm, etc. It is easy to operate and easy to install.
This digital pressure gauge is equipped with a large-size LCD display, which has various functions such as clearing, backlighting, switching, unit switching, low voltage alarm, etc. It is easy to operate and easy to install.
The product adopts 304 stainless steel shell and connector, which has good shock resistance and can measure gas, liquid, oil and other non-corrosive medium for stainless steel.
This intelligent digital pressure gauge is suitable for pressure measurement in portable pressure measurement, equipment matching, calibration equipment, etc.
Technical Characteristics
☆ Outer diameter 80mm, 304 stainless steel dial and connector
☆ battery power supply, can last for 12 months
☆ Timed collection
☆ USB output, support data export
☆ Dedicated data communication line
☆ can store up to 10,000 data
☆ With pressure scale bar indicating the current pressure percentage
☆ One-button clear error
☆ It can measure water, oil, gas and other media that are non-corrosive to stainless steel.
Parameter Index
|
Pressure range |
Vacuum: (0~-100) kPa |
|
Compound: (-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa (-0.1~1.0)MPa (-0.1~2.5)MPa, (-5~5) kPa (-10~10) kPa (-25~25) kPa (-50~50) kPa |
|
|
Micro pressure: (0~5) kPa (0~10) kPa (0~25) kPa (0~50) kPa (0~100) kPa |
|
|
Conventional: (0~160) kPa (0~250) kPa (0~400) kPa (0~600) kPa (0~1) MPa (0~1.6) MPa ... (0~100) MPa |
|
|
Differential pressure: (0~10...25...40...60...100...250...400...600)kPa, (0~1...1.6) MPa |
|
|
Mounting interface |
M20*1.5 G1/4 NPT1/4 |
|
Accuracy class |
0.4 %f.s 0.2%f.s |
|
Display digits |
4-digit LCD display |
|
Back light |
white backlight |
|
Size |
80mm diameter 48mm thickness |
|
Power supply |
3V (two 7th battery) |
|
Power consumption |
<0.005W |
|
Measuring medium |
Water, oil, gas, non-corrosive medium for stainless steel |
|
Function |
1. Power on/off 2. One-key clear 3. Maximum and minimum recording function 4. Backlight 5. Unit switching |
| Pressure range | Vacuum: (0~-100) kPa |
|---|---|
| Compound: (-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa (-0.1~1.0)MPa (-0.1~2.5)MPa, (-5~5) kPa (-10~10) kPa (-25~25) kPa (-50~50) kPa | |
| Micro pressure: (0~5) kPa (0~10) kPa (0~25) kPa (0~50) kPa (0~100) kPa | |
| Conventional: (0~160) kPa (0~250) kPa (0~400) kPa (0~600) kPa (0~1) MPa (0~1.6) MPa ... (0~100) MPa | |
| Differential pressure: (0~10...25...40...60...100...250...400...600)kPa, (0~1...1.6) MPa | |
| Mounting interface | M20*1.5 G1/4 NPT1/4 |
| Accuracy class | 0.4 %f.s 0.2%f.s |
| Display digits | 4-digit LCD display |
| Back light | white backlight |
| Size | 80mm diameter 48mm thickness |
| Power supply | 3V (two 7th battery) |
| Power consumption | <0.005W |
| Measuring medium | Water, oil, gas, non-corrosive medium for stainless steel |
| Function | 1. Power on/off 2. One-key clear 3. Maximum and minimum recording function 4. Backlight 5. Unit switching |
