Product introduction

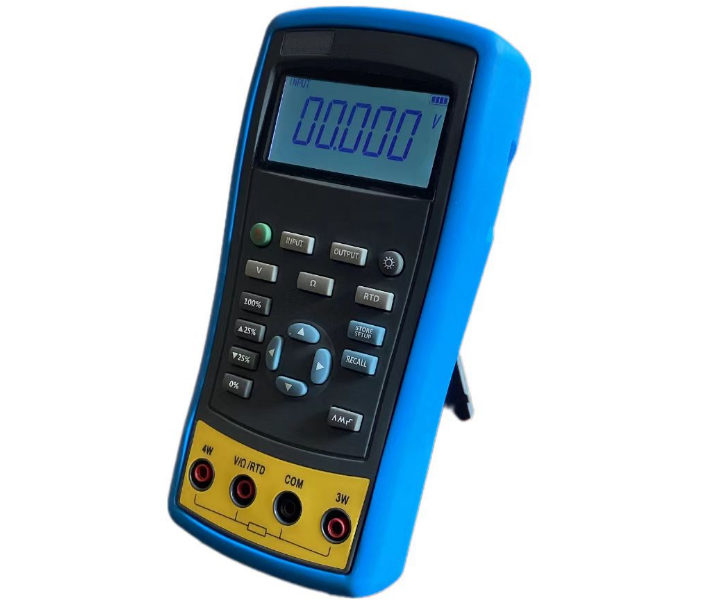

KT1812 RTD Calibrator is a kind of calibrating RTD temperature transmitter instrument, it can use on site. It can measure and simulate various type RTD. It can also simulate and test resistance.

Features

Accuracy: 0.05%F.s

Measure output temperature of thermal resistance

May simulate output of thermal resistance

Automatic identification of three-wire or four-wire connection mode

Perfect performance on waterproof protection: IP67 grade

In case of connecting 220V with automatic over voltage protection function.

With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function

LED with white backlight

Weight : 0.65kg

Dimensions: 185mm×93mm×47mm

Technical Specification

Measure and Source Functions

Function	Measure	Source
DC V	0～30V	Not available
Resistance	0～3200Ω	0～3200Ω
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
Others	Stepping output, ramp, phase step output, user-defined range
